Compressors

Under the MYCOM brand, Mayekawa’s compressors are used worldwide in industrial refrigeration and freezing, heat pumps, and gas markets. Our compressors leverage thermal technology developed through years of experience to consistently provide high quality. We also offer a full lineup of environmentally-friendly compressors that use natural refrigerants. We have received high evaluations for gas compressors through our experience with helium, hydrogen, water vapor, chlorine, hydrogen chloride, hydrogen sulfide (excluding oxygen and acetylene), and other gases in dealing with resource- and energy-related problems. MYCOM compressors are highly trusted, having been used globally for over 70 years.

Single-stage

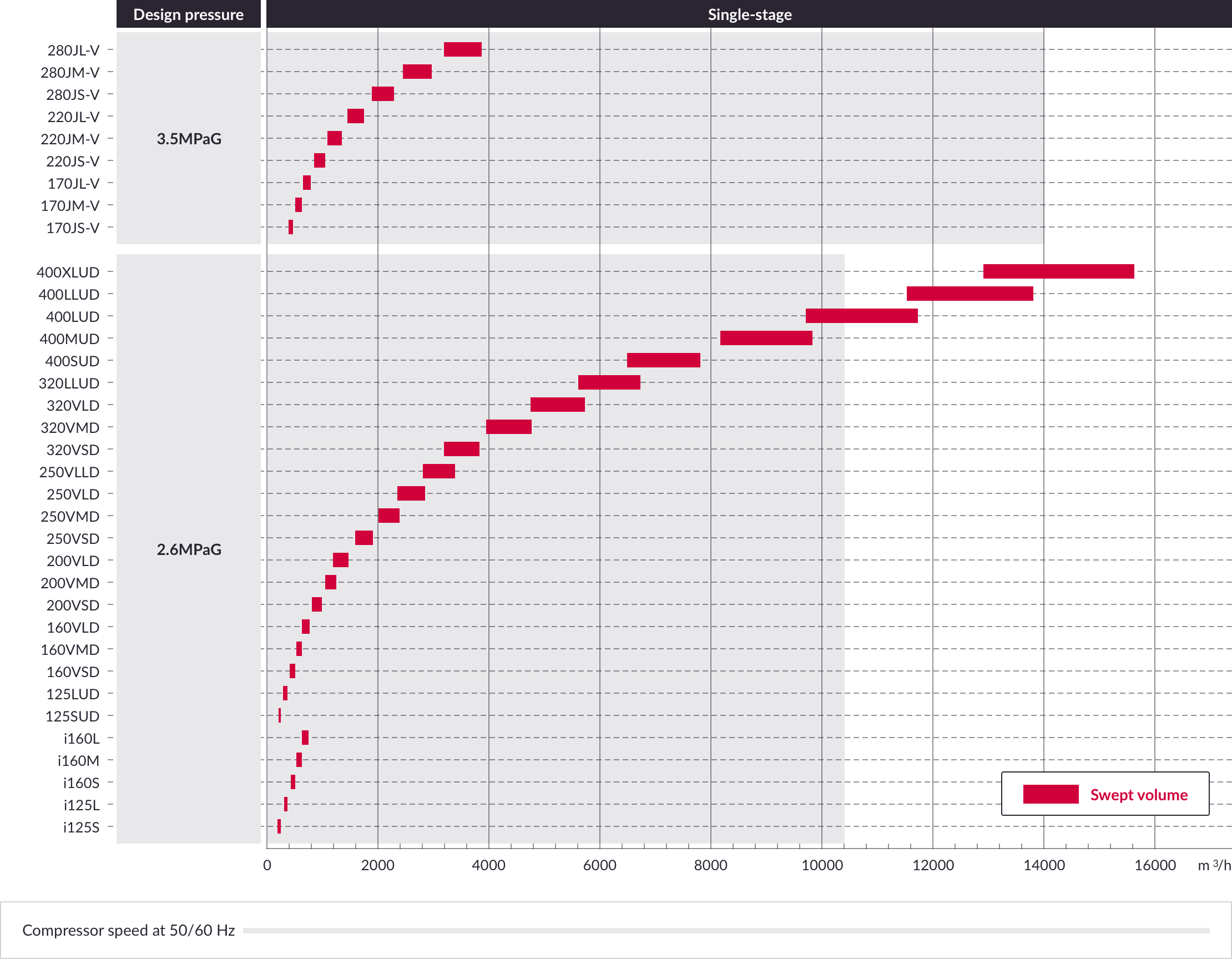

Capacity range

Download

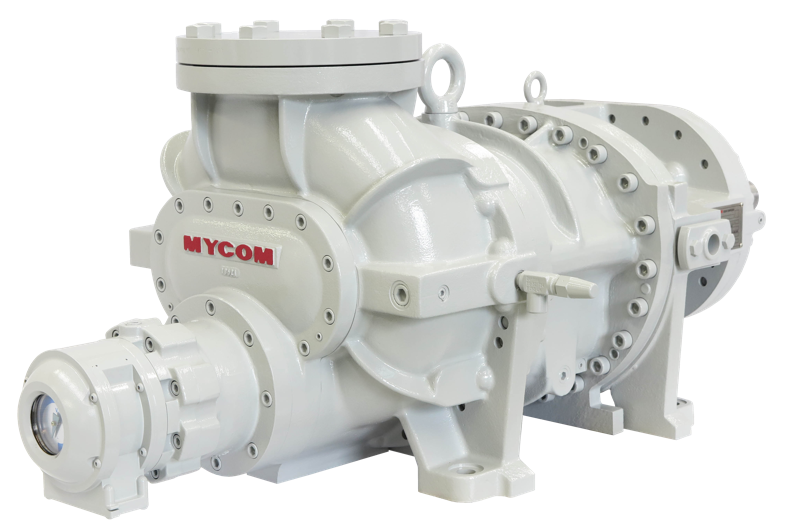

J-series

Newly designed compressor achieving high performance next-generation standard for industrial applications

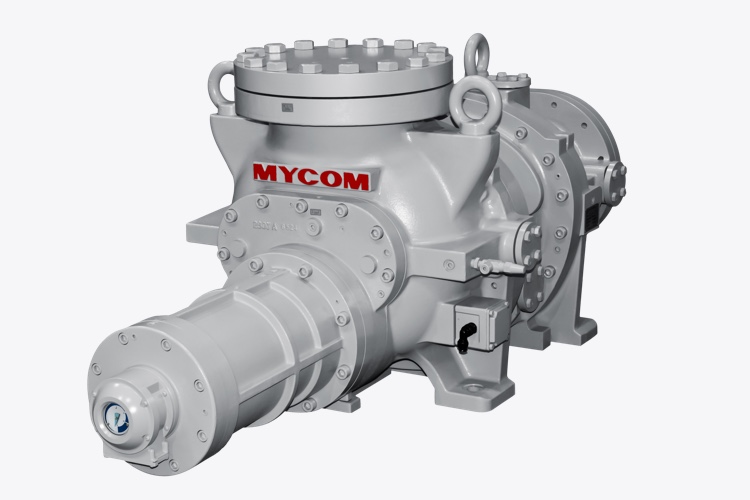

280J

  • Newly designed, high-performance, single-stage series (9models)
  • High performance achieved through the adoption of a new type of rotor tooth
  • Compatible with natural (ammonia, CO2, propane) and fluorocarbon refrigerants
  • Low vibration and low noise
  • Stepless capacity control from 100 to 25% range
  • Auto variable vi mechanism (from 2.5 to 5.0 range) to efficiently cover wide temperature range
  • Supports flange motors to facilitate design of packaged systems

* The 280J has no built-in check valve and does not support flange motors.

UD-series

Screw compressor that can handle various refrigerants while covering both small and large capacity ranges

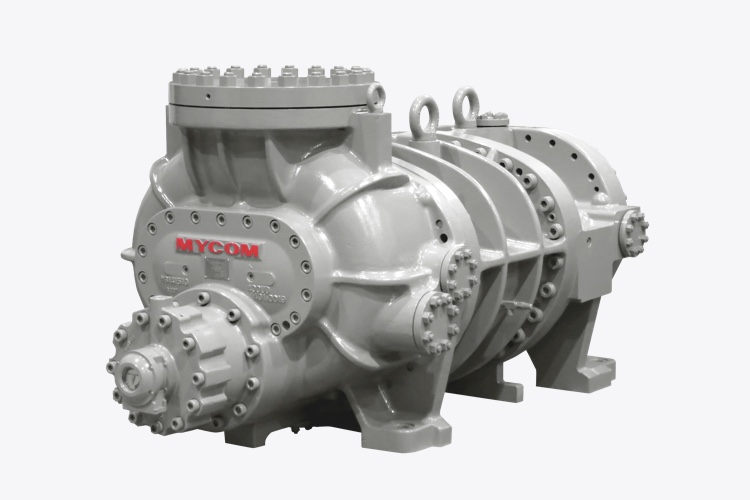

400SUD

  • A lineup of high-capacity compressors with a displacement of up to 15,600m³/h*1 (9,180CFM*2) *1 At 2950rpm,*2 At 3550rpm
  • Operates over a wide range of temperature and serves in industrial refrigeration applications
  • Compatible with natural (ammonia, propane) and fluorocarbon refrigerants
  • Proven 4:6 rotor configuration

SCV-series

A high performance, long selling series suitable for a wide range of applications

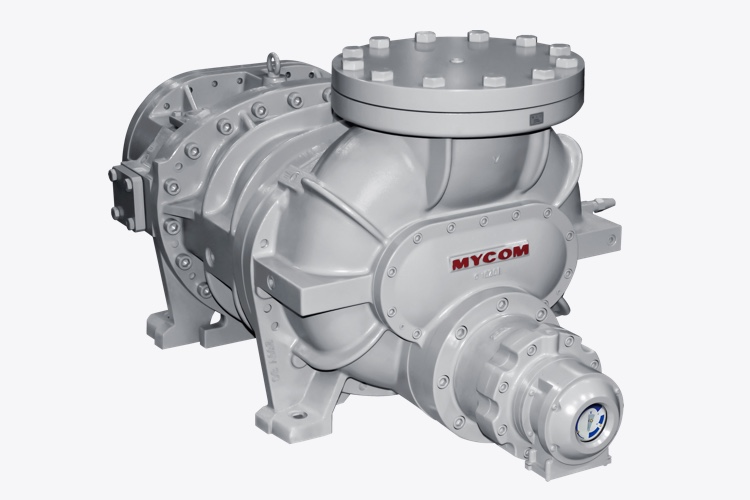

250V

  • Available in 13models, the SCV series covers a wide displacement range from 415 to 4740m³/h*1 (244 to 2790CFM*2)*1 At 2950rpm, *2 At 3550rpm
  • Variable vi mechanism (from 2.63 to 5.80range) to efficiently cover wide temperature range
  • Operates over a wide range of temperature and serves in industrial refrigeration and air conditioning applications
  • Compatible with natural (ammonia, propane) and fluorocarbon refrigerants
  • Proven 4:6 rotor configuration

i-series

Small compressor with high reliability

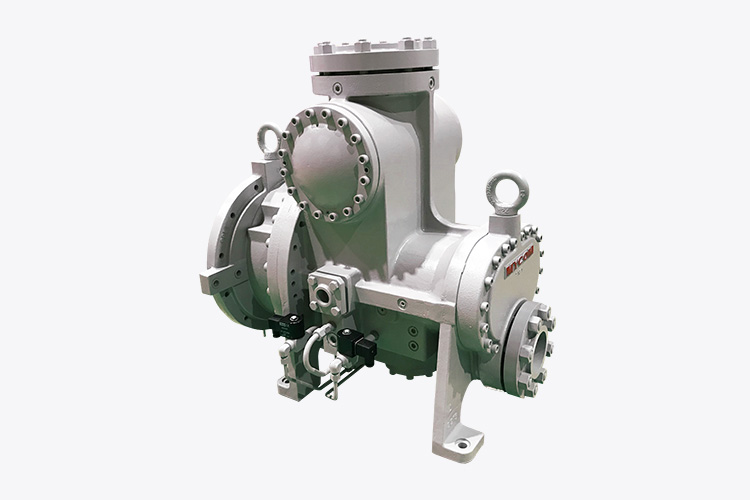

i160L without motor spacer

  • Facilitates design of packaged systems
  • New design eliminates a need of oil pump
  • Using a flange motor, the small-footprint compressor can be installed in a confined space
  • Designed to facilitate the replacement of consumables

Compound two-stage

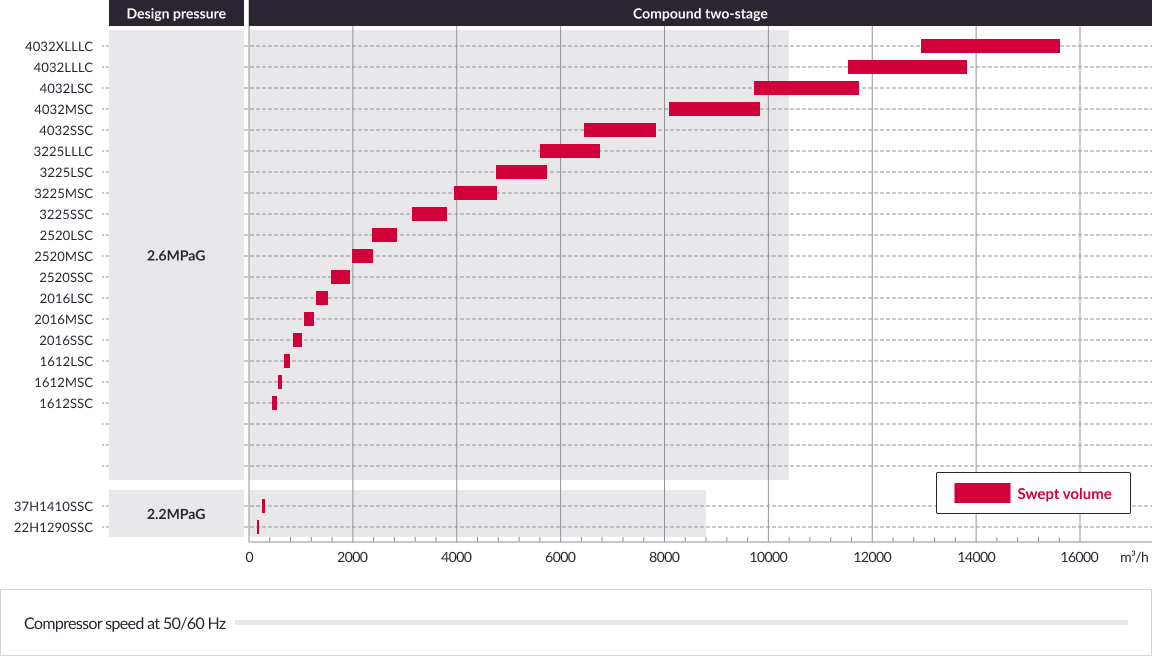

Capacity range

Download

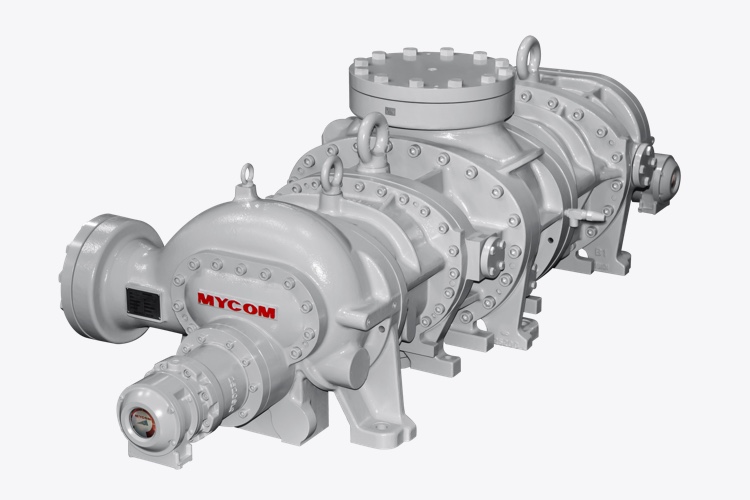

C-series

Highly-efficient compound compressor with No.1 track record in low temperature applications

2520LSC

  • Single machine two-stage compression to efficiently cover low temperature range
  • Available in 6models covering a wide displacement range 415 to 9,700m³/h*1 (294 to 5709CFM*2) *1At 2950rpm, *2At 3550rpm
  • Operational with one motor and oil separator based on a MYCOM original design
  • Proven 4:6 rotor configuration

MHS-series

A small-sized, two-stage series for low-temperature applications

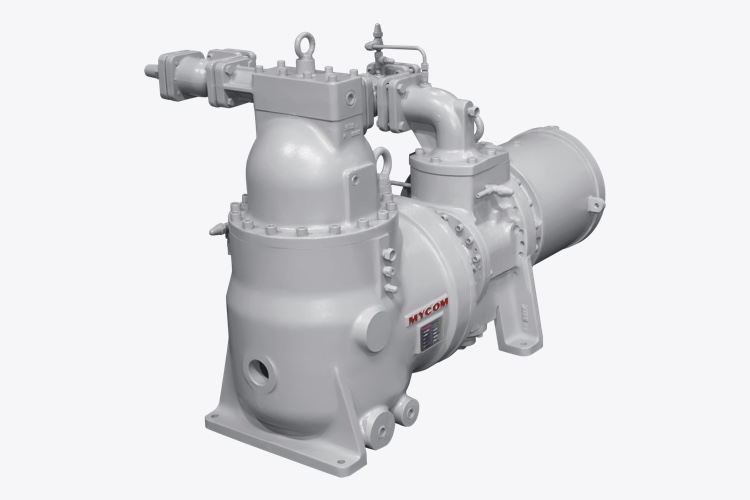

37H1410SSC

  • The water-cooled semi-hermetic motor, as well as MYCOM unique rotor design featuring different diameters, enables high efficiency
  • A simple, compact package made possible with an integrated semi-hermetic motor and oil separator design
  • Low vibration and low noise

Selection programme

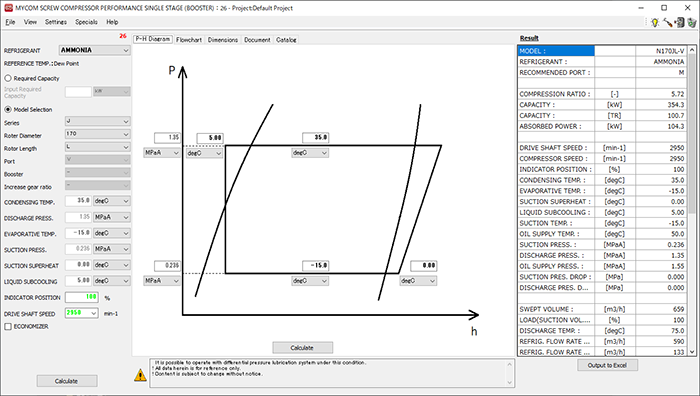

What is MYCOMW?

MYCOMW is a user-friendly programme for finding the most suitable MYCOM compressor matching your requirements. The following will assist your selection process.

  • Performance calculations for all MYCOM Screw and Reciprocating compressors
  • Performance calculations with single-stage, compound two-stage and separate two-stage
  • Performance calculations with various refrigerants
  • Getting catalogues, instruction manuals and outer dimensions

How to get MYCOMW

Please contact your MYCOM sales representative. An e-mail will be sent with a download link to the latest version of MYCOMW.

Contact for download

For parts replacement and repair of MYCOM compressor, please use genuine parts

The use of non-genuine parts available in the international market may cause abnormalities in MYCOM compressors including the followings
Decline in performance/Capacity reduction/Reduced life span/All MYCOM warranties become null and void when non-genuine parts are installed in the compressors.
Owners are cautioned to ensure that the only MYCOM genuine parts are used when carrying out overhauls or repairs on MYCOM compressors.
