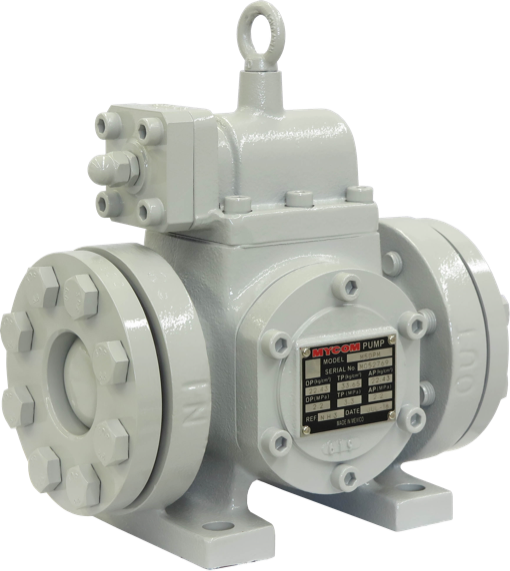

Oil pumps
The MYCOM oil pump is a high performance pump series based on screw compressor manufacturing technology that we have developed over many years. Low noise and vibration have been realized with our original gear shapes. This pump can be stably operated for long periods of time, even under severe conditions such as high pressure.

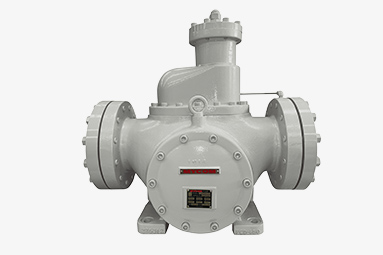

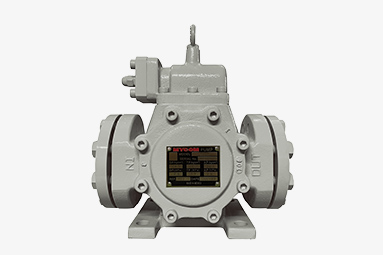

MP series - oil pumps for screw compressors

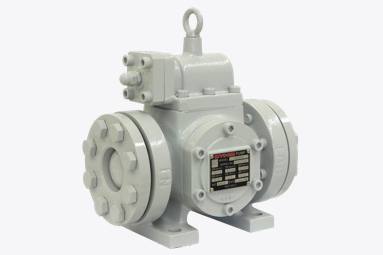

M50P

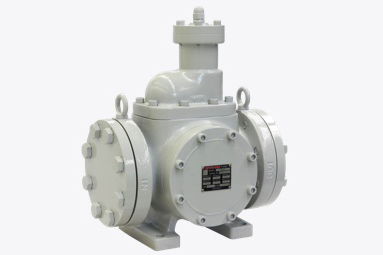

M80P

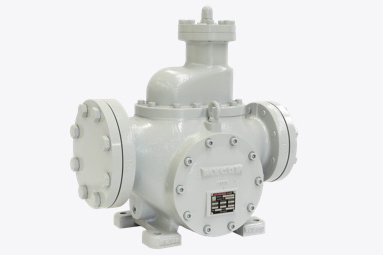

M100P
- The standard model of MYCOM oil pumps
- Simple structure ensures stable operations
- A wide lineup is offered (5sizes: M50P/M60P/ M80P/M100P/M125P, 62 to 1268 L/min /16.4 to 335.0USGPM)
- Two shaft seals are used to offset the axial direction load (standard configuration MP: pressure up to 25bar (363PSI)*1, optional configuration MPH*2 pressure up to 30bar/435PSI)
*1 For 60 only, to 22bar (319PSI)
*2 For three series only, 50, 80, 100

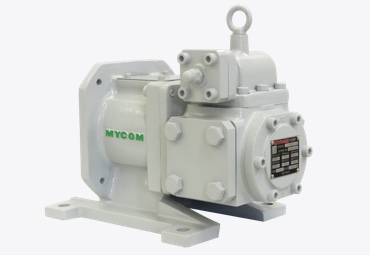

M50PS - oil pumps for screw compressors
- Supports higher pressures based on MPH* (to 59bar/725PSI)
*optional configuration of the MP series

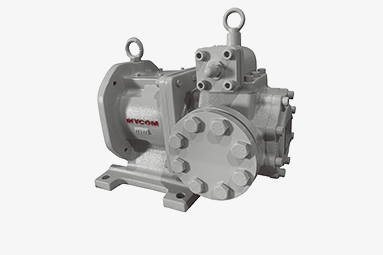

FP series - oil pumps for screw compressors

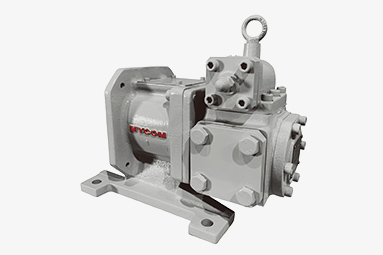

F50P
- A series that is compatible with flange motors and that offers the same functionality as the MP series
- Installation is made easy due to the compatibility with flange motors
Selection programme

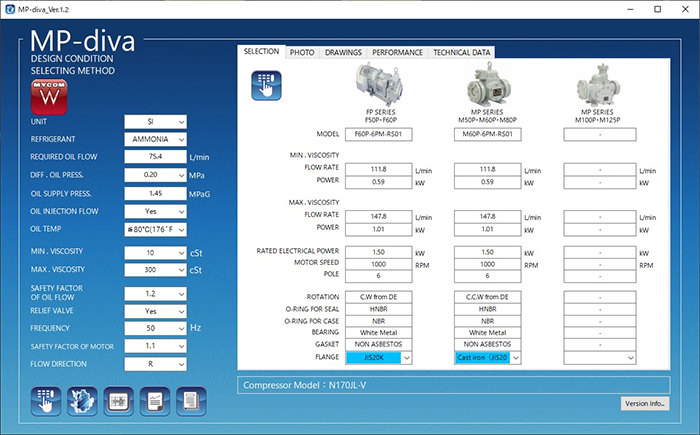

What is MP-diva?
MP-diva is a user-friendly programme for finding the most suitable MYCOM oil pump matching your requirements. The following will assist your selection process.
- Performance calculations of MYCOM oil pumps from required conditions
- Getting outer dimensions
How to get MP-diva
Please contact your MYCOM sales representative. An e-mail will be sent with a download link to the latest version of MP-diva.

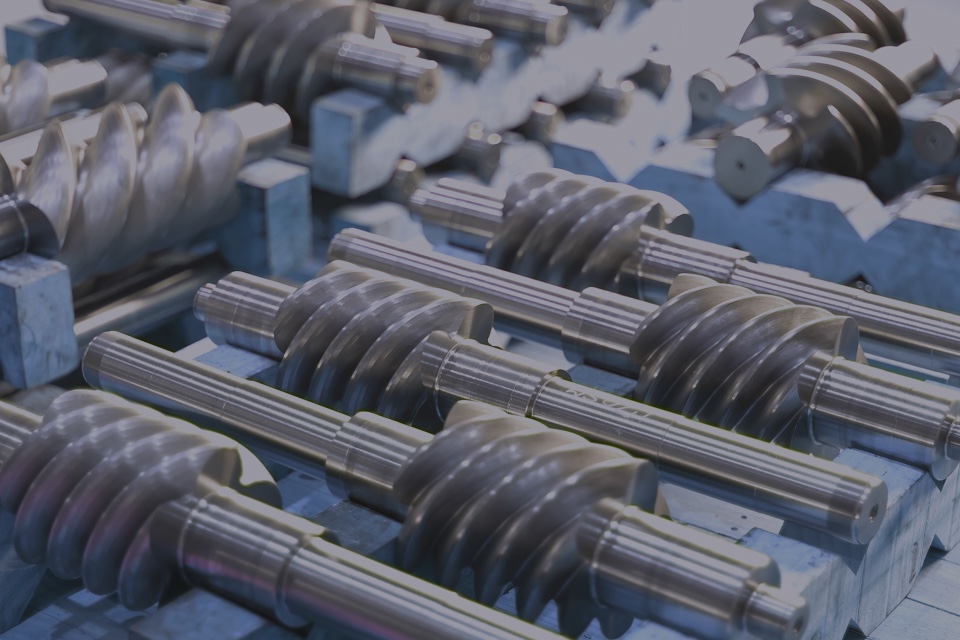

For parts replacement and repair of MYCOM compressor, please use genuine parts
The use of non-genuine parts available in the international market may cause
abnormalities in MYCOM compressors
including the followings
Decline in performance/Capacity reduction/Reduced life span/All MYCOM warranties
become null and void when non-genuine
parts are installed in the compressors.
Owners are cautioned to ensure that the only MYCOM genuine parts are used when carrying out overhauls
or repairs on
MYCOM compressors.
