Cooling systems for industrial processes

Systems from Mayekawa are used for a wide range of applications, including cooling fuel oil used in various ships, HIgh energy physics and fusion science laboratories, and cooling processes in the petrochemistry and medical fields. With technical expertise developed over many years, we can propose and develop unique systems that meet highly challenging client needs, such as those related to specific temperature zones, including ultra-low and cryogenic.

Cryogenic

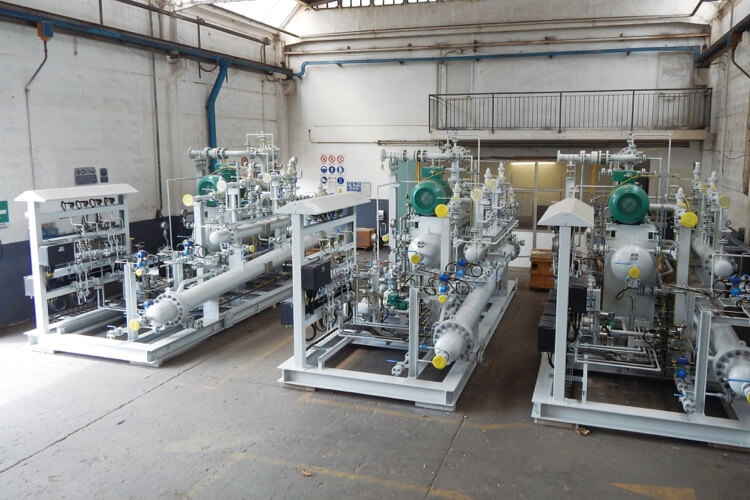

Helium gas compressor

Helium gas compressor

We have been responding to client needs since developing the world’s first oil-injection helium compressor almost a half-century ago. We are rated highly on various aspects, such as our simple packages realized by using Mayekawa’s original large compound compressor and the adoption of new lubricants that suppress the generation of impurities. We have an extensive and proven track record in HIgh energy physics and fusion science laboratories, and are active all over the world, including Japan, the US, Germany, France, China, Russia, India, and South Korea.

SPECIFICATIONS

  • Displacement: 240 to 15,800m3/h (141 to 9298CFM)
  • Suction pressure: 15 to 700kPaA (2.2 to 101.5psiA)

WHERE TO USE

  • HIgh energy physics
  • Fusion science
  • Anterooms(dock shelter, air shelter)

Cryogenic

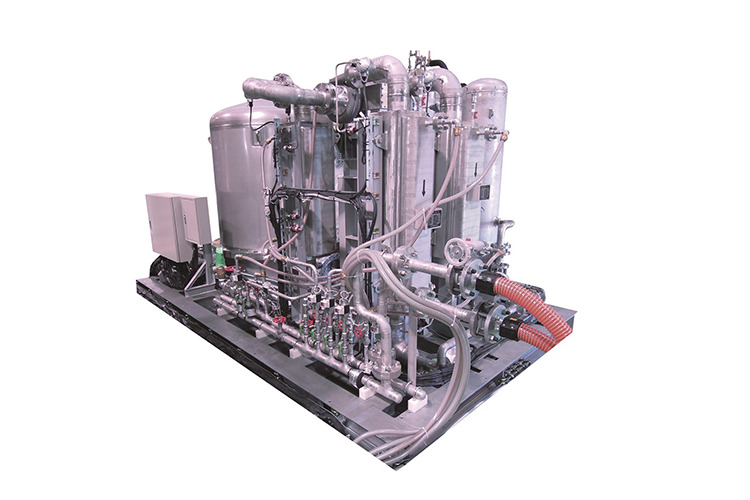

Brayton NeO - brayton cycle cryocooler

Brayton NeO

Brayton NeO is possible to cool below -220℃ (-364℉) utilizing a reverse Brayton cycle and a turbo compressor and expander.
We have provided the cooling system for high-temperature superconducting (HTS) device, the liquefier of LNG and the alternative cooling system of liquid nitrogen.
This refrigerator is used in industrial and medical, food industrial fields.

SPECIFICATIONS

  • Cooling Capacity: 5kW* (1.4TR)
  • Temperature Range: 65 to 120 K
  • COP: 0.08*
  • * class at 77 degrees Kelvin

WHERE TO USE

  • Cryogenic equipments
  • HTS system
  • LNG system

Ultra-low temperatures

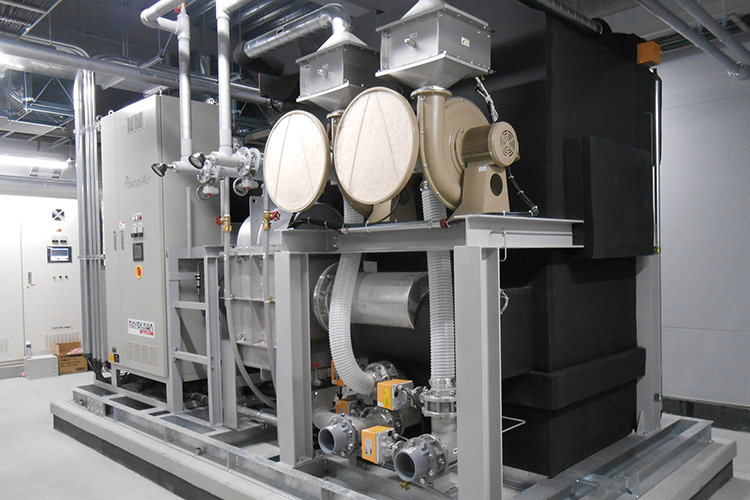

PascalAir FC - air cycle system -50 to -100°C (-58 to -148°F)

PascalAir FC

PascalAir is an air cycle system that employs glycol as an air refrigerant and uses a heat exchanger to create an ultra-low temperature range -50 to -100℃ (-58 to -148℉) with an air cycle.
Air, not HFCs, serves as the refrigerant, so the refrigerant does not negatively impact the environment. Furthermore, in the ultra-low temperature range -50 to -100℃ (-58 to -148℉), it is possible to reduce CO2 emissions and achieve energy savings of up to 50% over conventional vapor compression cooling systems.

SPECIFICATIONS

  • Cooling capacity: 15/30kW (4.3/8.5TR)*
    Room temperature: -50 to -100℃ (-58 to -148℉)
    Refrigerant: N.A. (working fluid: Air)
    *Chamber temperature: -60℃ (-58℉)

WHERE TO USE

  • Quick freezing
  • Freeze drying
  • Home appliance recycling (cryogenic grinding)
  • Semiconductor manufacturing processes
  • Markets requiring cryogenic temperatures such as medical
  • Pharmaceutical
  • Physics/chemistry fields

BOG reliquefaction

BOG gas reliquefaction equipment

BOG gas reliquefaction equipment

It is inevitable that liquefied gas storage tanks will have some of their content gasified due to external heat inputs or cargo handling. Such gas is known as boil-off gas (BOG). Reliquefaction equipment for BOG re-liquefies the BOG by compressing and condensing it and then returns it to the tank. Mayekawa offers various gas re-liquefaction compressors and cooling systems for use in both onshore storage and marine transport tankers.

SPECIFICATIONS

  • Applicable gases: Ammonia, LPG, Ethylene, LNG, etc.

WHERE TO USE

  • Gas carrier
  • Import/export gas terminal and inland gas station
  • Gas processing plants
  • Petrochemical and chemical plant such as fertilizer plants

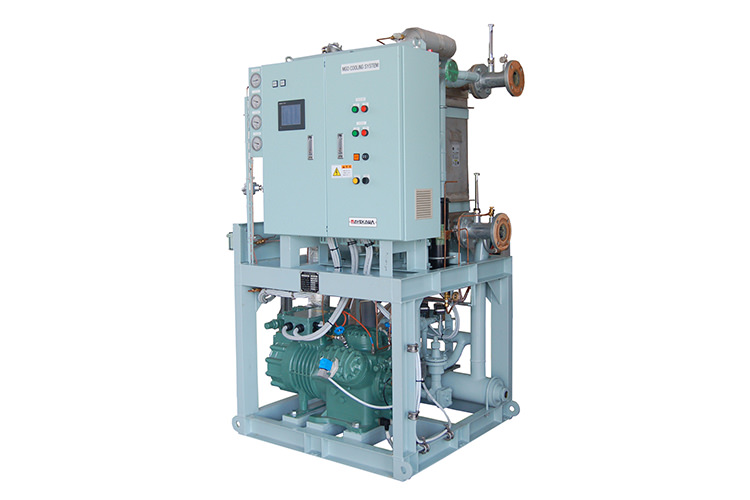

MGO (Marine Gas Oil) cooling system

MGO cooling system

Compact and flexible designed fresh water chilling unit

• In the aim of installing the unit not only for the new building ships but
also for the existing ships, our units are so designed as to minimize the
foot print to be installed at the limited machinery space.
• For the condenser, it is possible to choose either fresh water cool or sea water cool type.

Very easy and reliable operation

• Utilizing Mayekawa electronic expansion valve system for the fresh water chiller, the outlet fresh water temperature is very precisely controlled and at time superheating the same time, is controlled fully automatically, thus a very secured and reliable operation to be accomplished.
• The compressor’s capacity control to be carried out step‐wise according to the suction pressure and full automatic controlled EPR is installed on the suction line to maintain the system running at very low heat load.
And with a combination of automatic controlled three way control valve installed on the outlet of MGO cooler, the MGO temperature to be finally controlled fully automatically and very accurately.
• To avoid heat contraction to main engine, generator engines and MGO piping, the cooling speed of MGO can be freely adjusted and controlled fully automatically.

SPECIFICATIONS

  • Dimensions of unit: L1000 x W1000 x H1950mm (≒39.4 x 39.4 x 76.8in)
